Understanding Multi-Agent AI and Frameworks: A Comprehensive Guide

From Solo Bots to AI Dream Teams

Understanding AI Agents: The Building Blocks

An AI agent is an autonomous software entity designed to perceive its environment, make decisions, and take actions to achieve specific goals. Think of it as a digital worker with specialized skills and responsibilities. Each agent follows a continuous cycle of:

1. Observing its environment

2. Processing information

3. Making decisions

4. Taking actions

5. Learning from outcomes

What makes an AI agent "intelligent" is:

1. Autonomy: Make independent decisions without constant human intervention

2. Adaptability: Learn from experience and adjust its behavior

3. Goal-Oriented: Work towards specific objectives while handling obstacles

4. Specialization: Excel at particular tasks through focused capabilities

5. Interaction: Communicate with its environment and other agents

These capabilities are powered by:

• A knowledge base that stores information and experiences

• Decision-making algorithms that evaluate options and choose actions

• Specialized tools and skills for specific tasks

• Learning mechanisms that improve performance over time

In multi-agent systems, individual agents become part of a larger, coordinated team, each bringing their specialized capabilities to solve complex problems collectively. Just as human teams benefit from diverse expertise, multi-agent systems leverage each agent's unique strengths to achieve superior results.

The Rise of Multi-Agent AI Systems

Imagine a team of specialized AI agents working together seamlessly, each with their expertise and responsibilities, collaborating to solve complex problems. This isn't science fiction – it's the reality of modern multi-agent AI frameworks. Just as human teams benefit from diverse skills and perspectives, these AI frameworks leverage multiple specialized agents to tackle sophisticated challenges more effectively than single agents could alone.

What Are Multi-Agent AI Frameworks?

At their core, multi-agent AI frameworks orchestrate multiple AI agents to work together, each with specific roles and capabilities. These frameworks enable agents to communicate, delegate tasks, and collaborate like a well-coordinated human team. The key difference is that these interactions happen autonomously, guided by sophisticated algorithms and predefined objectives.

Leading Multi-Agent AI Frameworks

The market features numerous platforms designed to facilitate the development and deployment of agentic AI systems. Each comes with its own set of features, strengths, and ideal use cases. Below, we highlight five leading frameworks:

1. CrewAI

   • Overview: CrewAI is an open-source platform that enables the orchestration of autonomous AI agents called “crews.” Each agent is assigned specific roles, goals, and tools.

   • Why Consider It?: CrewAI is user-friendly, making it easier for developers to create and manage agent teams quickly. Its role-based design and flexible task management simplify setup and deployment, making it ideal for rapid development and decision-making tasks.

2. AutoGen (Microsoft Research)

   • Overview: AutoGen is an open-source framework focused on complex AI workflows through dynamic multi-agent conversations. It integrates seamlessly with various Large Language Models (LLMs).

   • Why Consider It?: If you need robust integration with external tools, APIs, and multiple LLMs, AutoGen’s event-driven architecture makes it a prime choice for projects requiring extensive interoperability.

3. LangGraph

   • Overview: LangGraph offers a graph-based orchestration approach, providing a structured way to build and manage agents for multi-step, intricate workflows.

   • Why Consider It?: LangGraph shines when customization is key. Its modular, graph-based design empowers developers to define complex agent interactions and data flows, making it perfect for enterprise automation and tailored, intricate processes.

4. OpenAI Swarm

   • Overview: Swarm is a lightweight, open-source framework for education and experimentation. It’s designed to help users grasp the fundamentals of multi-agent interactions.

   • Why Consider It?: When simplicity and learning are your priorities, OpenAI Swarm provides a streamlined environment. It’s best for educational purposes, proofs-of-concept, and simple task automation.

5. Amazon Bedrock’s Multi-Agent Collaboration

   • Overview: Built on Amazon’s cloud platform, Bedrock enables orchestrator-based, scalable multi-agent systems, managing complex, multi-step tasks effectively.

   • Why Consider It?: Enterprises looking for scalability and robust orchestration will appreciate Bedrock’s ability to handle large-scale deployments, making it suitable for complex enterprise workflows and large data environments.

Key differences illustrated in these workflows:

CrewAI: Peer-to-peer interaction with autonomous decision-making

Amazon Bedrock: Centralized orchestration with hierarchical control

AutoGen: Event-driven communication with dynamic routing

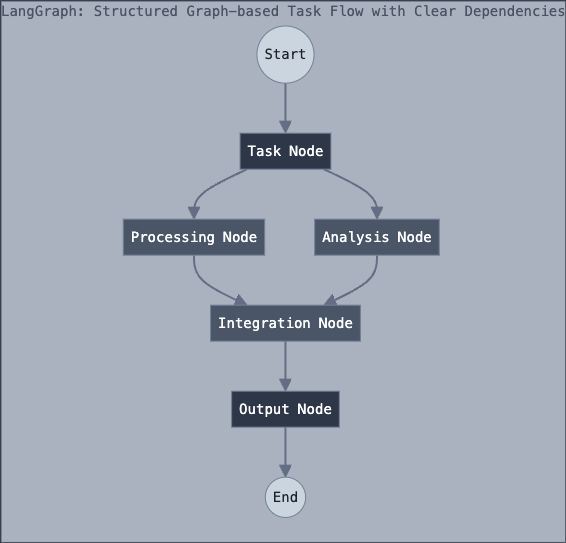

LangGraph: Structured graph-based task flow with clear dependencies

OpenAI Swarm: Simple, linear processing with minimal overhead

Summary of Key Features, Strengths and Use Cases

Getting Started with Agents: Customer Support Chatbot

To illustrate how multi-agent AI frameworks can be applied, let’s consider a generic customer support chatbot scenario:

Objective: Build an AI-driven customer support system capable of handling various inquiries efficiently.

Agents & Roles:

• User Interaction Agent: Greets users, understands inquiries, and forwards them for processing.

• Query Processing Agent: Analyzes the user’s question to determine the appropriate action—FAQ retrieval, ticket creation, or escalation.

• Information Retrieval Agent: Gathers relevant data from an internal knowledge base or external APIs.

• Response Generation Agent: Composes a helpful and accurate response to the user query.

• Feedback Collection Agent: Collects user feedback to refine responses and improve the system continually.

This modular approach can be applied to numerous domains, from e-commerce support to IT helpdesks, enabling teams to quickly build scalable, intelligent support systems.

Getting Started with Agents: A Step-by-Step Guide

1. Choose Your Framework:
   Identify your key priorities—ease of use, integration, scalability, customization, or education—and select the framework accordingly.

2. Set Up Your Environment:
   Follow the chosen framework’s installation and configuration instructions. Ensure all dependencies (such as Python packages or cloud credentials) are in place.

3. Define Agent Roles & Responsibilities:
   Specify what each agent does. For a chatbot scenario, one agent might handle initial contact, while another focuses solely on knowledge retrieval.

4. Develop & Test Agents Individually:
   Build each agent in isolation to ensure it performs its task correctly. Use unit tests or mock data to confirm expected behavior.

5. Integrate Agents into a Cohesive System:
   Combine agents, defining communication protocols and data flows. Verify that the system works end-to-end, from user input to feedback collection.

6. Visualize & Monitor:
   Use workflow diagrams and monitoring dashboards to understand agent interactions and identify performance bottlenecks or areas for improvement.

7. Iterate & Improve:
   Gather feedback and performance metrics to refine the system over time, making your multi-agent AI solution increasingly effective.

Getting Started with Agents: Hands-on Guide Using Swarm

Developing a customer support chatbot using OpenAI's Swarm framework involves orchestrating multiple specialized agents to handle distinct tasks. Here's a high-level walkthrough of the process, mapped to the seven key steps:

1. Choose Your Framework

Given the need for a lightweight educational framework that facilitates multi-agent orchestration, OpenAI's Swarm is an ideal choice. Swarm focuses on making agent coordination and execution lightweight, highly controllable, and easily testable.

GitHub

2. Set Up Your Environment

• Install Swarm: Ensure you have installed Python 3.10 or later. Install Swarm directly from GitHub:

bash

• Copy code

  pip install git+https://github.com/openai/swarm.git

• Configure API Access: Set your OpenAI API key as an environment variable:

python

• Copy code

  import os os.environ['OPENAI_API_KEY'] = 'YOUR_OPENAI_API_KEY'

3. Define Agent Roles & Responsibilities

Outline the specific functions for each agent:

• User Interaction Agent: Engages with customers to understand and categorize their inquiries.

• Query Processing Agent: Analyzes categorized inquiries to determine the appropriate response or action.

• Information Retrieval Agent: Fetches relevant information from the company's knowledge base or external sources.

• Response Generation Agent: Constructs coherent and helpful responses based on retrieved information.

• Feedback Collection Agent: Gathers customer feedback to improve future interactions.

4. Develop & Test Agents Individually

Create and validate each agent separately:

• User Interaction Agent:

python

• Copy code

  from swarm import Agent user_interaction_agent = Agent( name="User Interaction Agent", instructions="Engage with customers to understand and categorize their inquiries." )

• Query Processing Agent:

python

• Copy code

  query_processing_agent = Agent( name="Query Processing Agent", instructions="Analyze inquiries to determine the appropriate response or action." )

Test each agent using mock data to ensure they perform their designated tasks correctly.

5. Integrate Agents into a Cohesive System

Combine the agents, establishing communication protocols and data flow pathways:

• Define Handoff Functions: Enable agents to delegate tasks:

python

• Copy code

  def handoff_to_query_processing(): return query_processing_agent user_interaction_agent.functions.append(handoff_to_query_processing)

• Orchestrate Workflow: Set up the sequence of agent interactions:

python

• Copy code

  from swarm import Swarm client = Swarm() messages = [{"role": "user", "content": "I need help with my account."}] response = client.run(agent=user_interaction_agent, messages=messages)

Verify that the system works end-to-end, from user input to feedback collection.

6. Visualize & Monitor

Use workflow diagrams to map agent interactions and monitoring dashboards to track performance:

• Workflow Diagram: Illustrate the sequence of interactions among agents, highlighting the flow of information and decision-making processes.

• Monitoring: Implement logging to capture agent activities and outcomes for analysis.

7. Iterate & Improve

Collect feedback and performance metrics to refine the system:

• Analyze Logs: Review logs to identify bottlenecks or errors.

• Update Agents: Modify agent instructions or handoff protocols based on insights.

• Continuous Improvement: Regularly update the knowledge base and agent capabilities to enhance performance.

By following these steps, you can develop a multi-agent customer support chatbot using OpenAI's Swarm framework, ensuring each component functions effectively both individually and as part of an integrated system.

For a practical demonstration, consider watching the following tutorial:

Selecting the appropriate multi-agent AI framework requires careful consideration of factors such as capabilities, initial setup effort, and ongoing maintenance. This guide aims to clarify these aspects, assisting you in making an informed decision.

Summary of Multi-Agent AI Frameworks

By understanding the distinct capabilities and requirements of these frameworks, you can choose the one that best aligns with your project's needs and resources.
